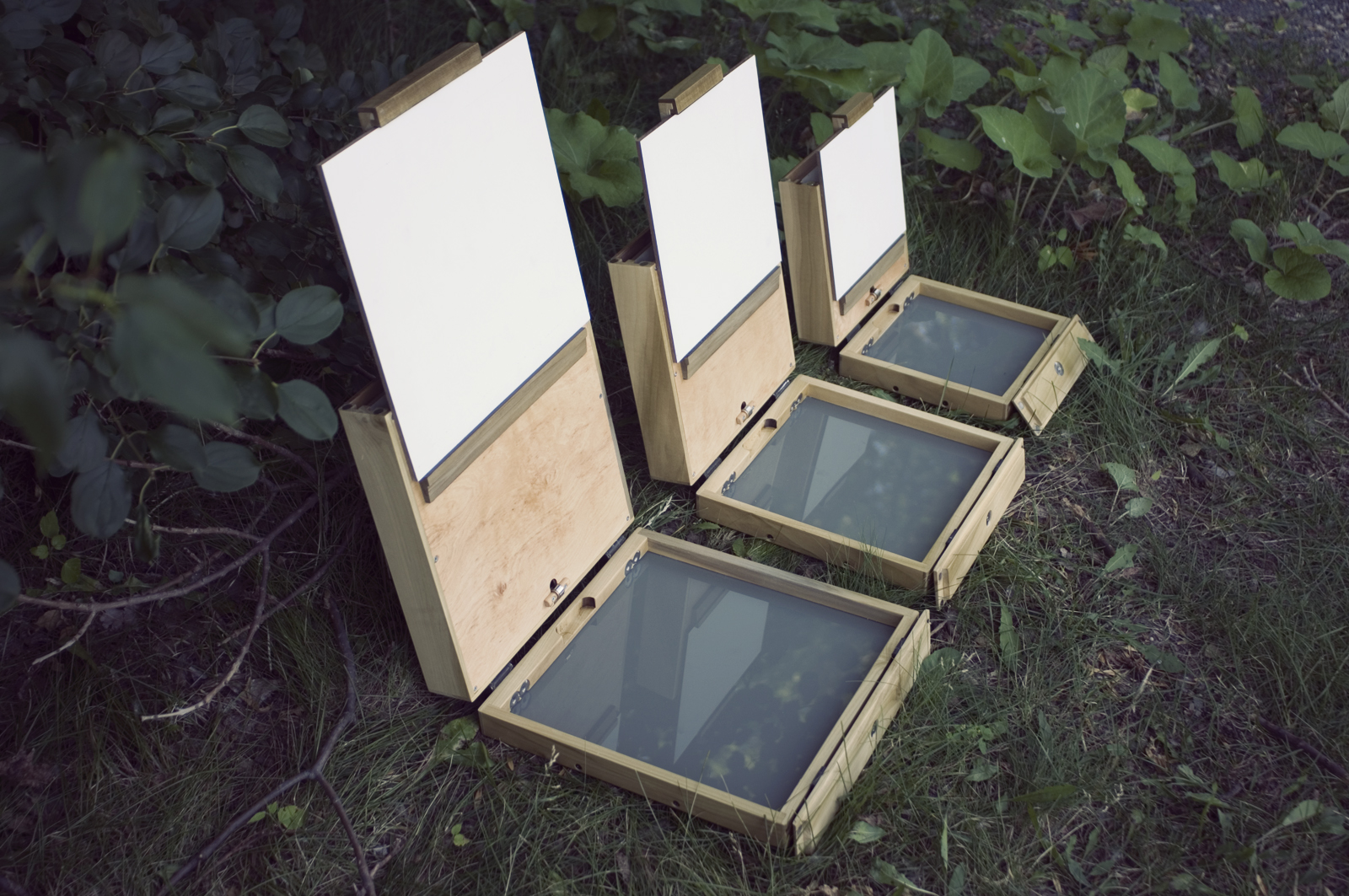

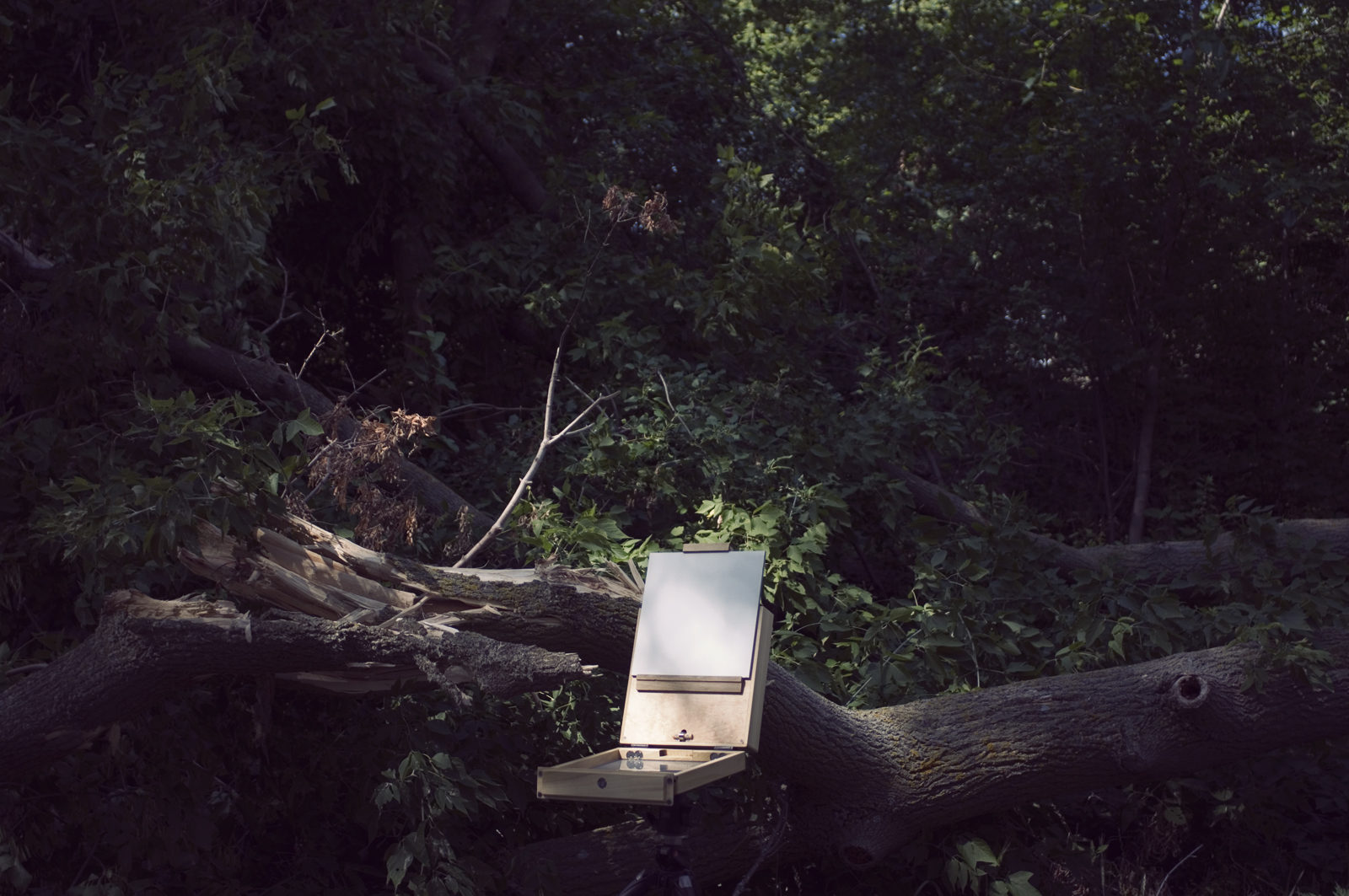

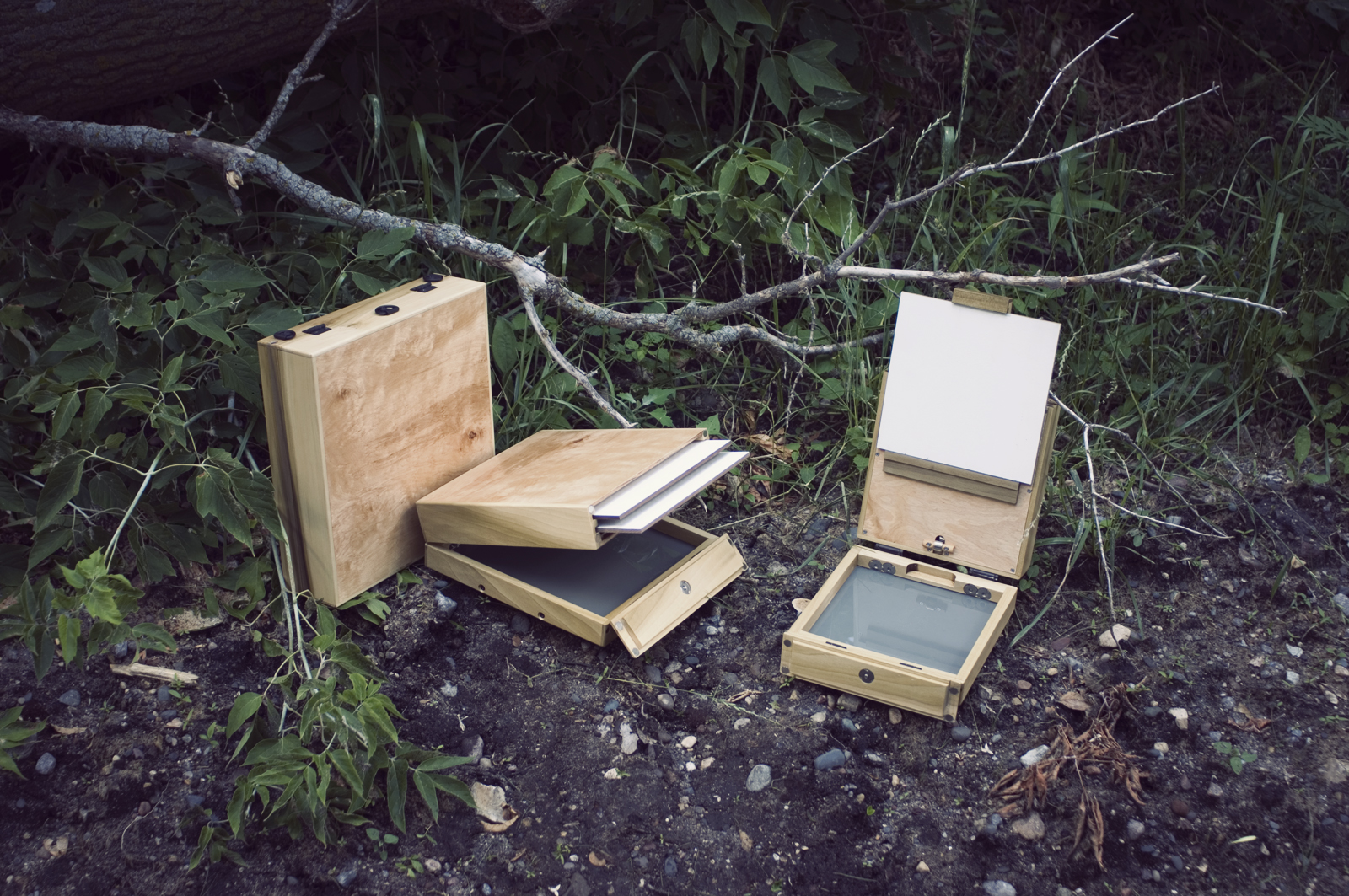

Field painting box – a streamlined take on a field painting box with wet panel storage, adjustable spring-loaded easel mechanism, and incorporated palette.

painting box group 12x12 10x10 8x8 02painting box group 12x12 10x10 8x8 10painting box group 12x12 10x10 8x8 12painting box 10x10 01field painting box light 12x10 01



  • Quick setup and take-down – open it up and get to painting.

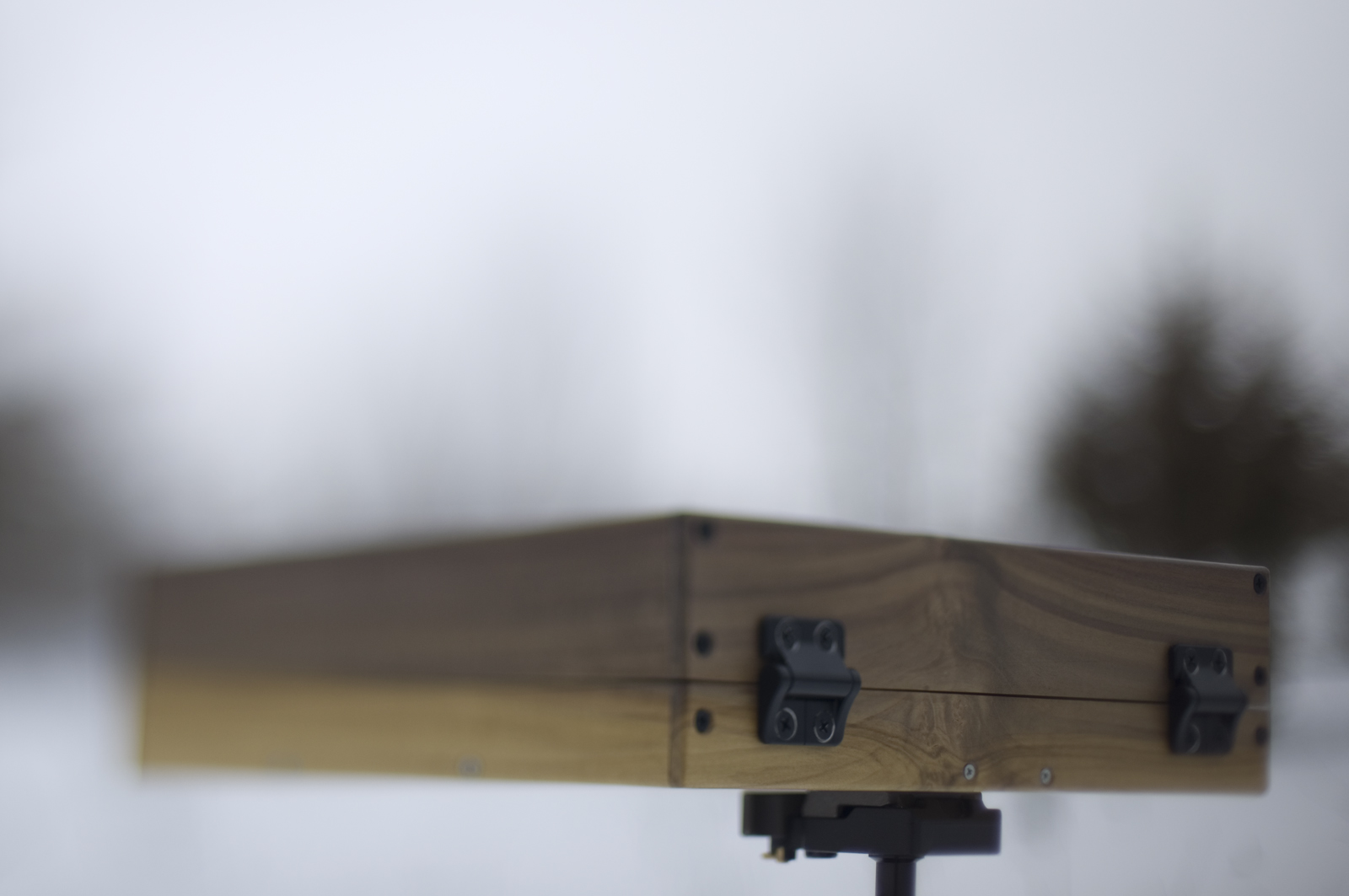

  • Friction hinges keep the lid at the angle it is opened to (similar to a laptop screen, but with enough torque to allow for painting without shifting the angle).

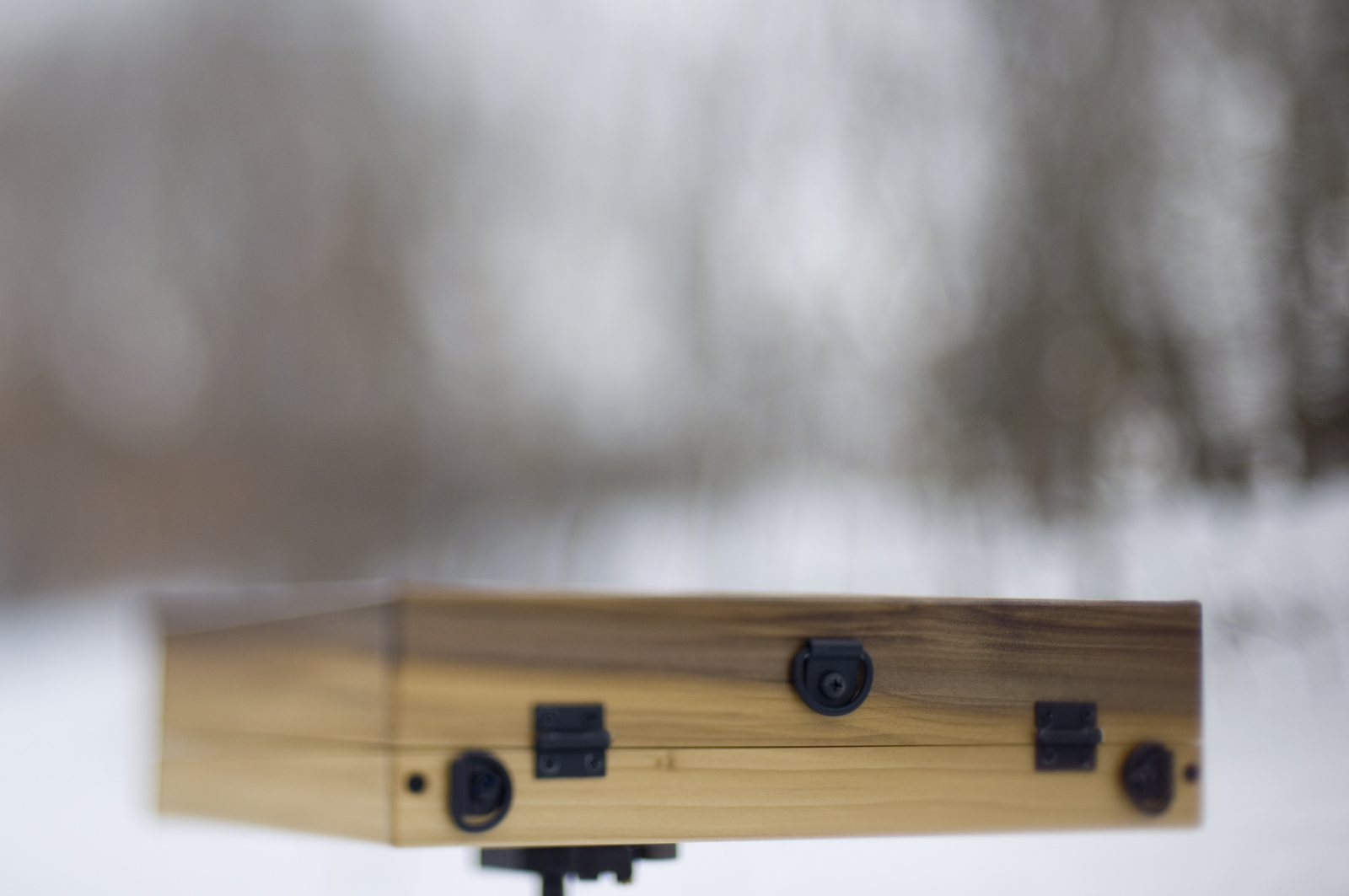

  • Magnets are used in place of latches for simplicity.

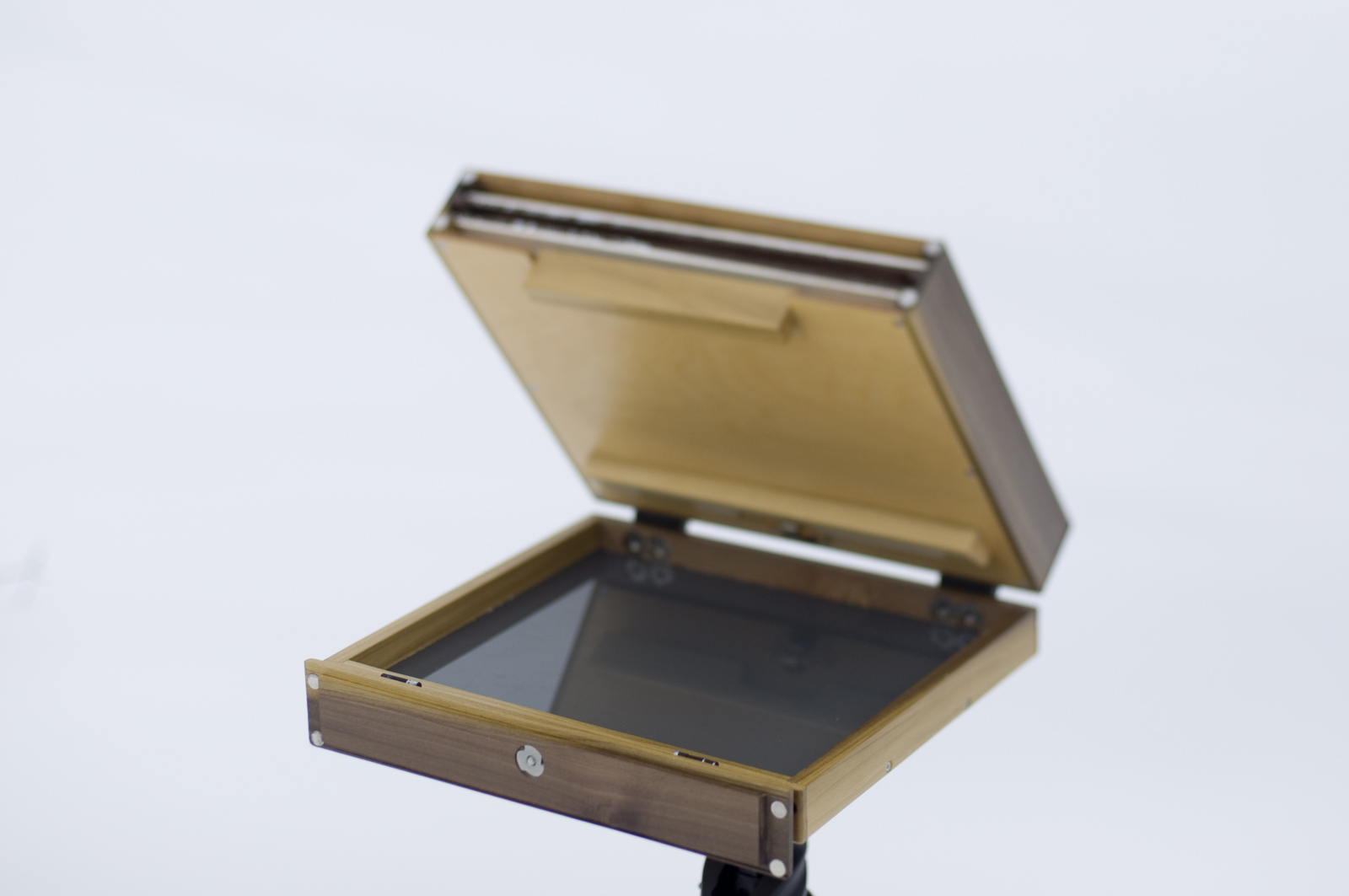

  • Glass pallet compatible – one side is removable and space is left to slide in a replacement palette (actually including the glass is only available as a local pickup option due to shipping difficulties).

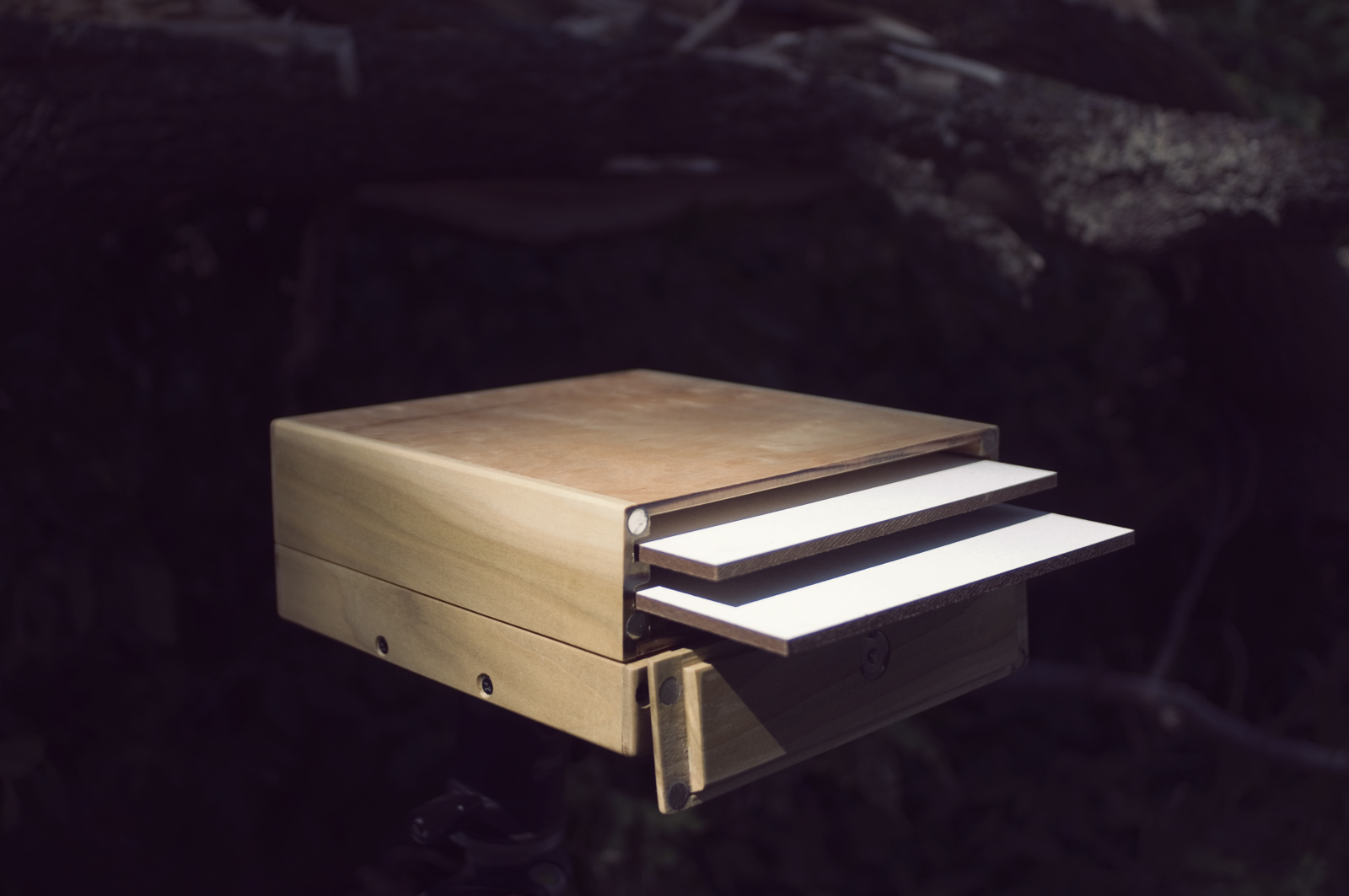

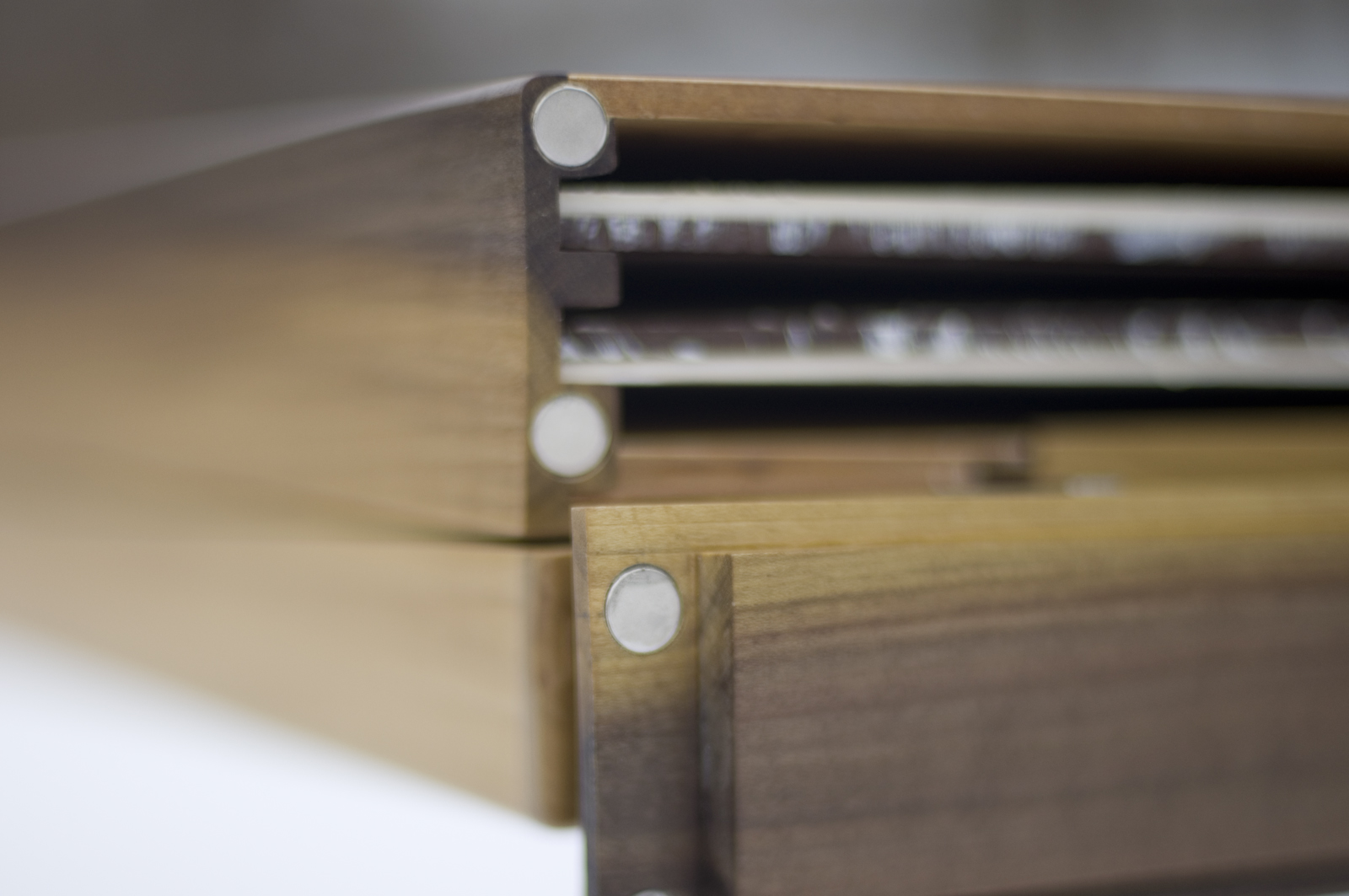

  • Lid stores and transports wet paintings and/or extra panels (up to four 1/8″ thick when placed back to back).

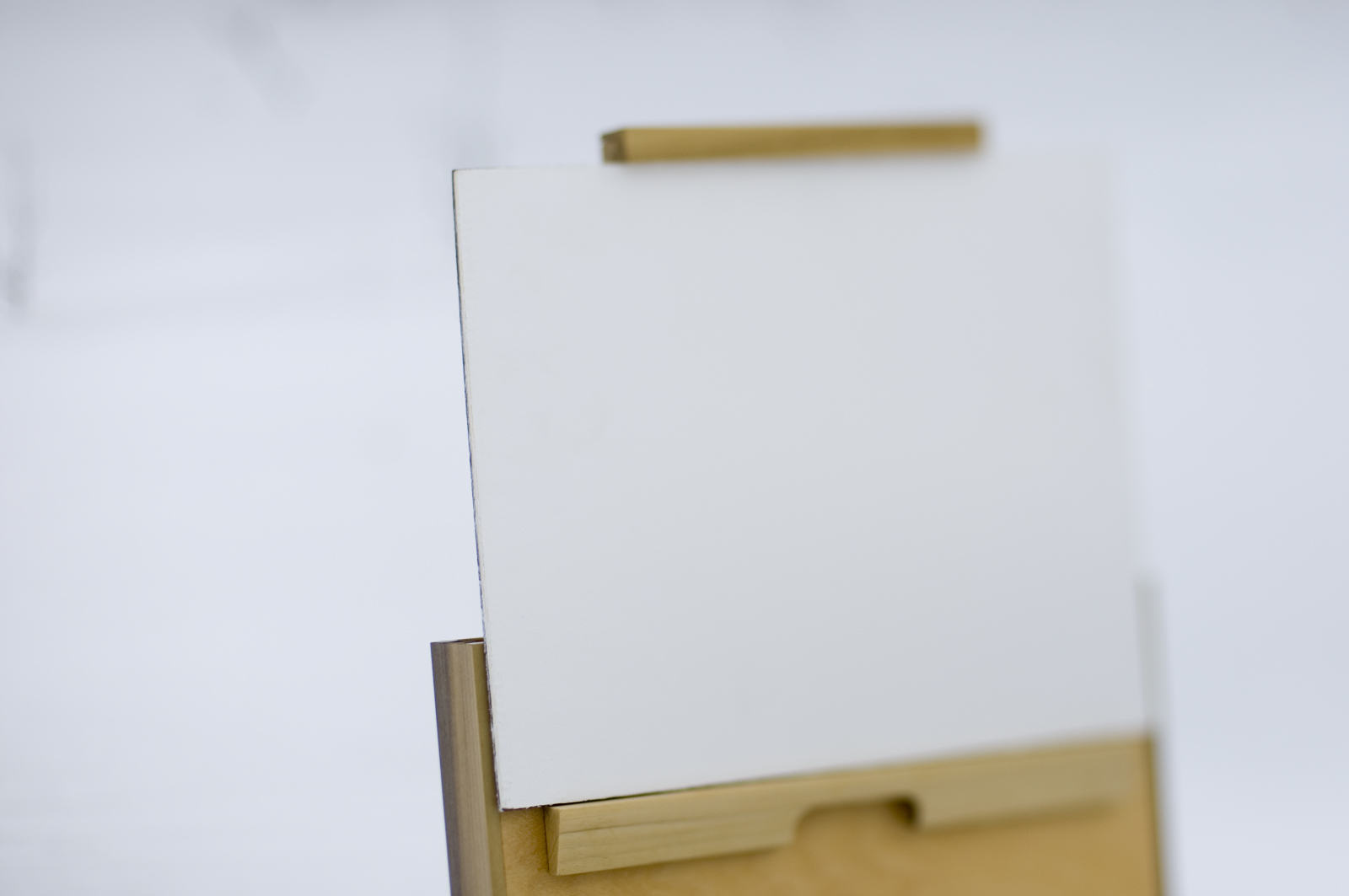

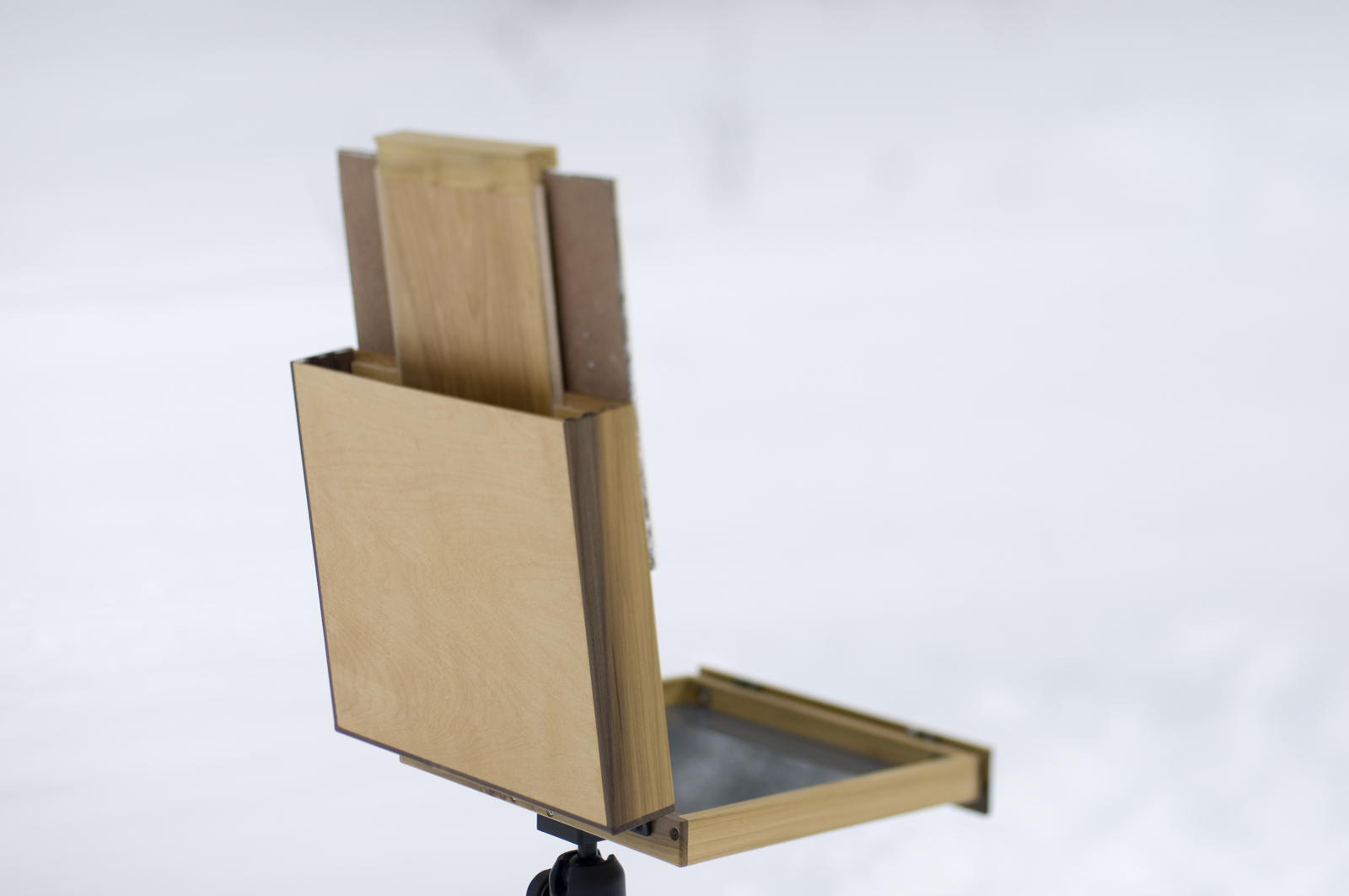

  • Constant force spring in the integrated easel holds the panel while painting
  • Magnetic easel base moves up and down to change the height of the panel while painting.
  • The top and the bottom of the easel are adjustable to enable easily reaching to the entire surface.
  • D-rings for a carrying strap.

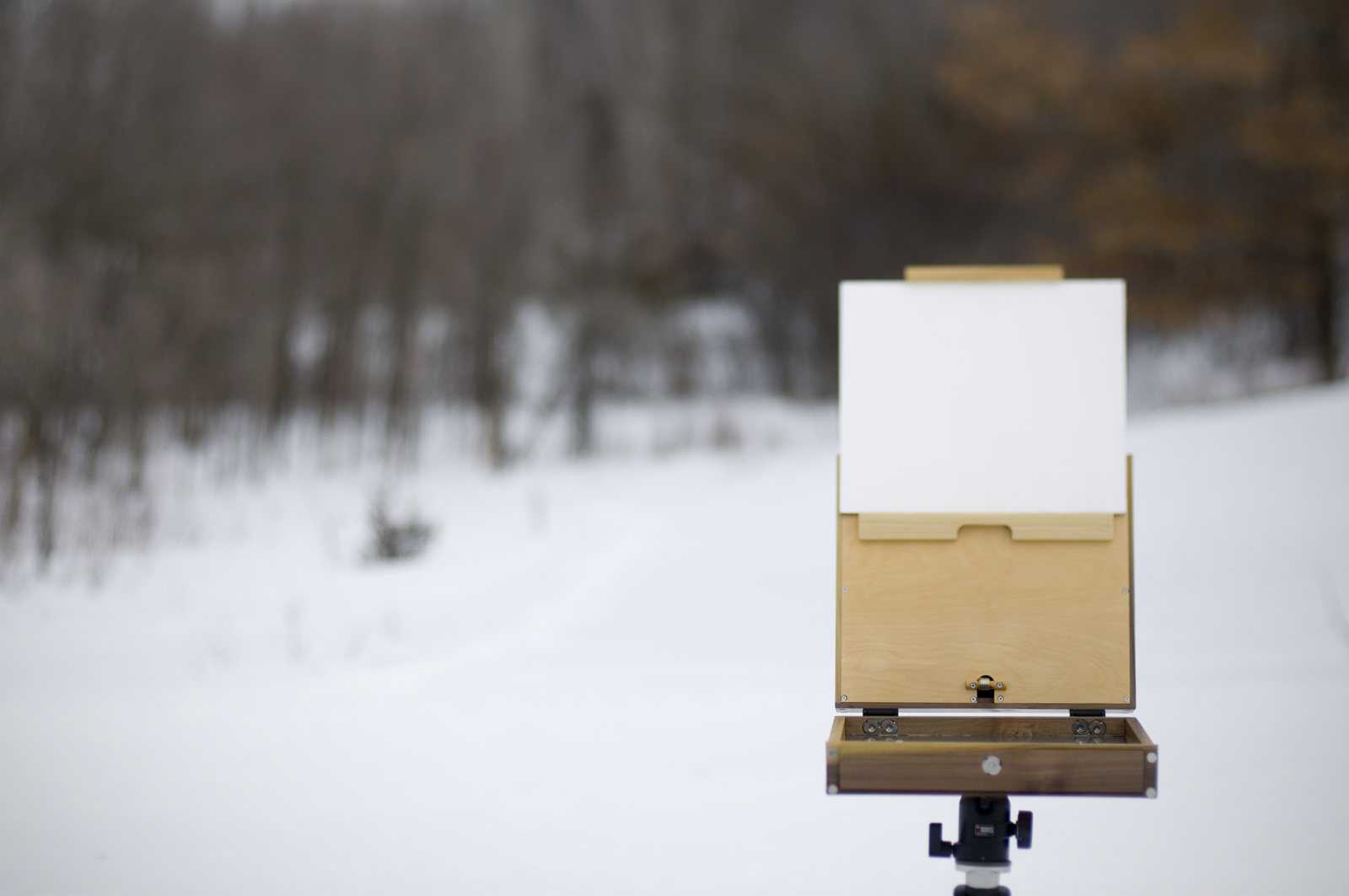

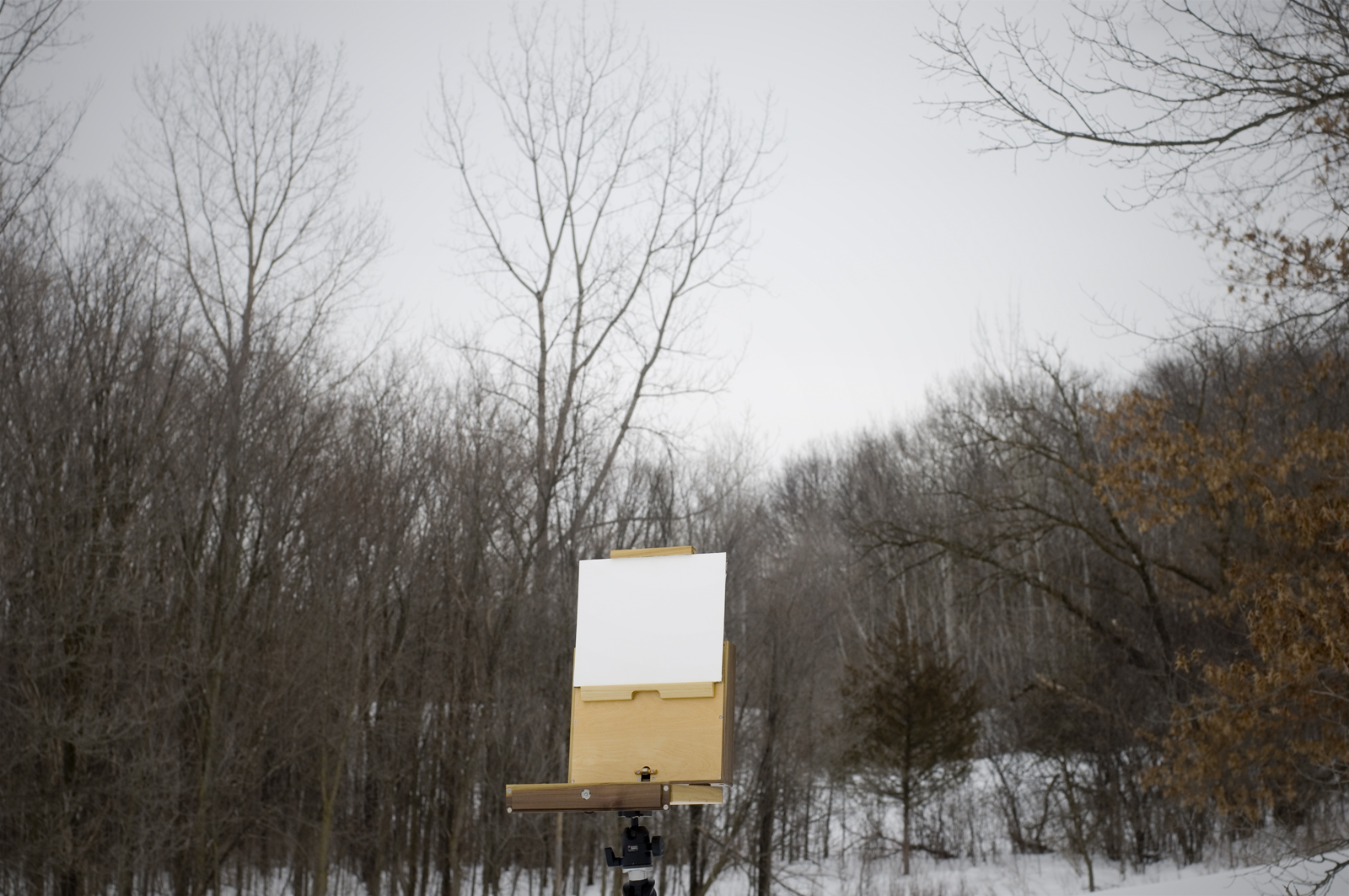

  • Threaded insert in bottom for attaching to a tripod or quick-disconnect plate.
  • Flat bottomed design also allows for table-top or lap use.
  • Satin poly-urethane finish adds protection and quality feel.


painting box 8x8 03painting box 12x12 02




Materials: poplar, birch ply

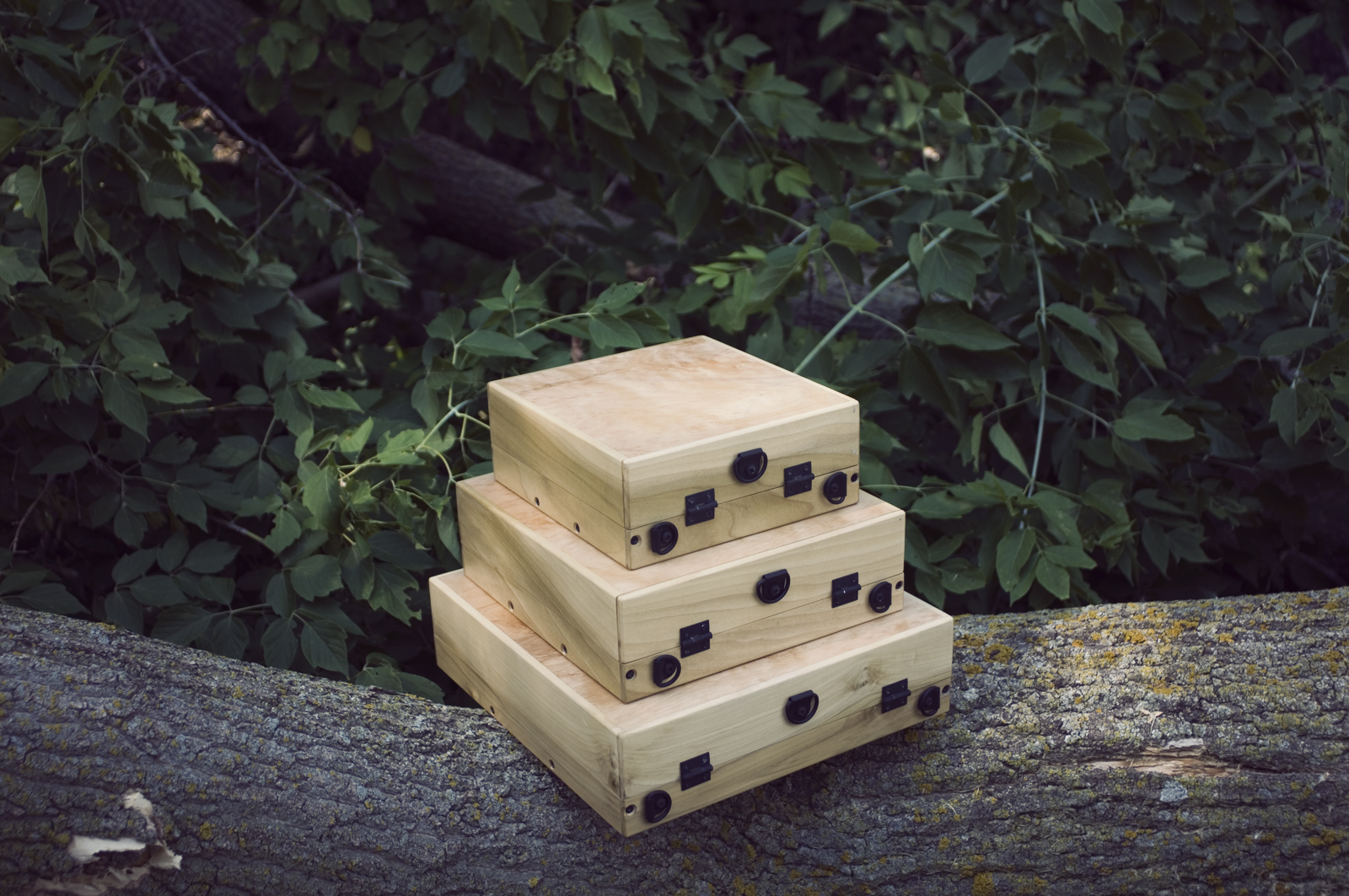

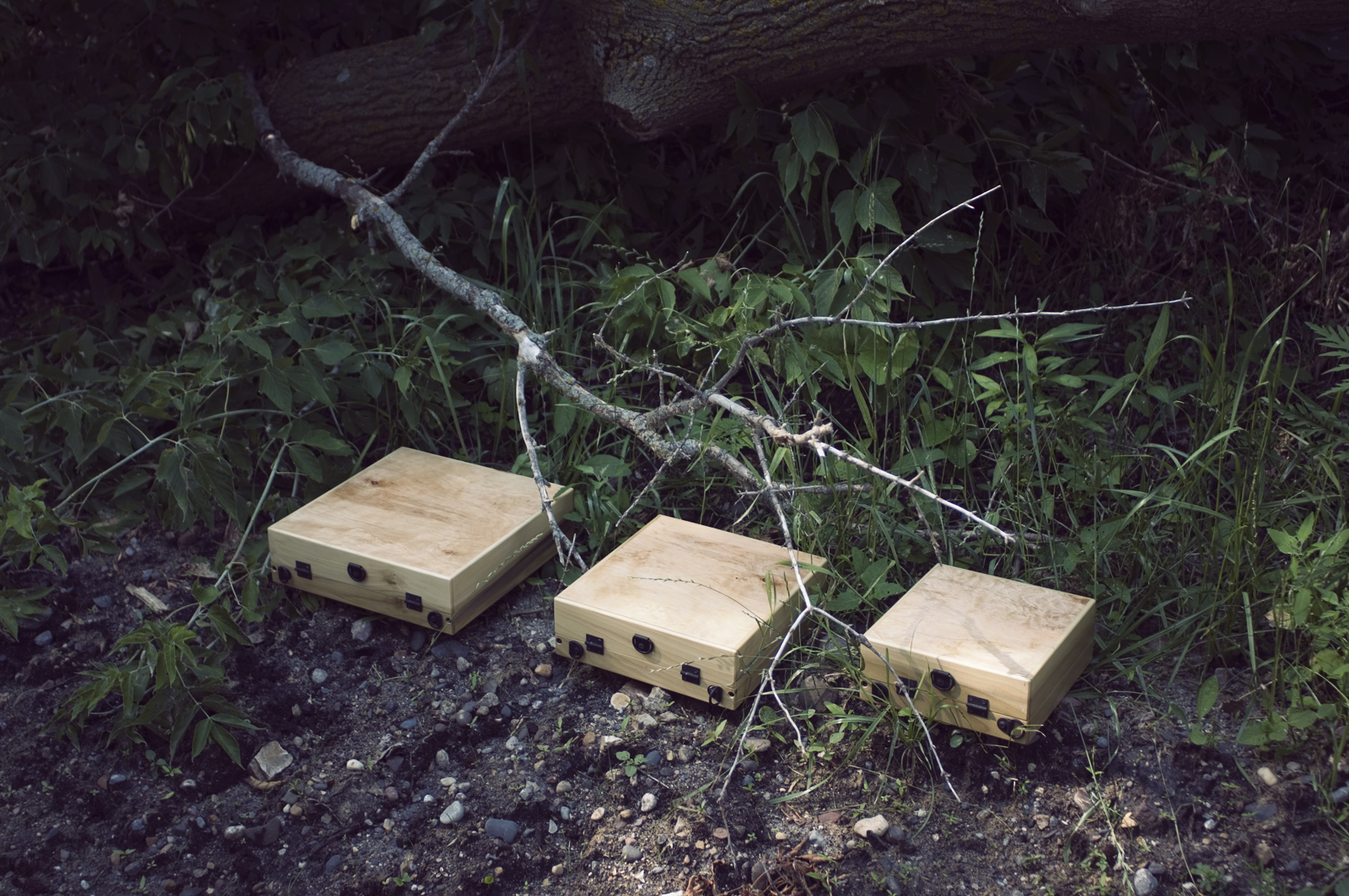

  • box sizes are determined by the panel size ( in inches) that fit in the lid.
  • standard aspect ratio is square, but can be made to custom specifications (cost is determined by the largest side).
  • overall dimensions add 2 1/2″ front to back, and 1/2″ from side to side.
  • 3 3/8″ in thickness.

Estimated build time: 3-4 weeks
